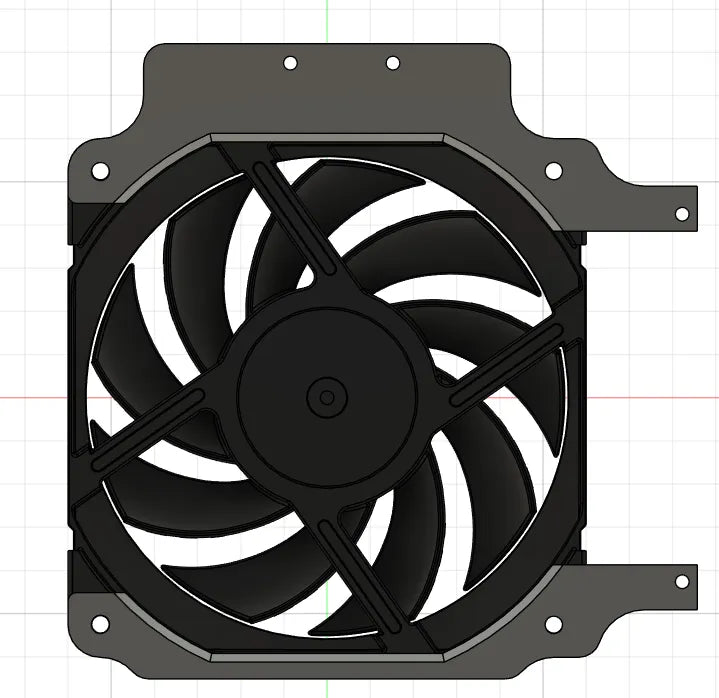

SSUPD Meshroom D - 120mm Side Fan Mount and 120mm slim (15mm) Top Fan Mount

This is a set of fan mounts for the SSUPD Meshroom D ITX PC case. The original case allows for the mounting of a 120mm or 140mm side exhaust fans using a series of rails. These rail span the entire width of the case and can interfere with some CPU coolers and they also block airflow as the cover part of the fan blades. The side mounts here allow for the mounting of a 120mm fan without the use of the stock rails. The mounting holes align with the case holes and use the screws provided with the case for mounting the rail hardware. The base case setup does not allow for a top exhaust fan mount. In order to make room for the top slim fan, a SFX power supply must be used and the PSU mounting bracket must be mounted to the lower set of mounting holes on the side of the case. In this configuration the top screws for the PSU bracket are not used, but I find the the PSU is very stable with just the two side screws. The top mount brackets use normal fan screws to connect the mount to the existing rails on the top of the case. "The fan mounts for the SSUPD Meshroom D ITX PC case provide a convenient solution for users who want to add a 120mm fan without the use of stock rails. With the mounting holes aligning perfectly with the case holes and the use of provided screws, the installation process is effortless. Additionally, the option to mount a slim (15mm) top fan is made possible by using a SFX power supply and mounting the PSU bracket to the lower set of holes on the side of the case. This not only provides better airflow, but also increases stability for the PSU. The top mount brackets easily attach to the existing rails on the top of the case using standard fan screws. No need to worry about interfering with CPU coolers or blocking airflow, these fan mounts are designed with functionality in mind."
