VW Volkswagen Golf R GTI MK8 Front Plate Mount

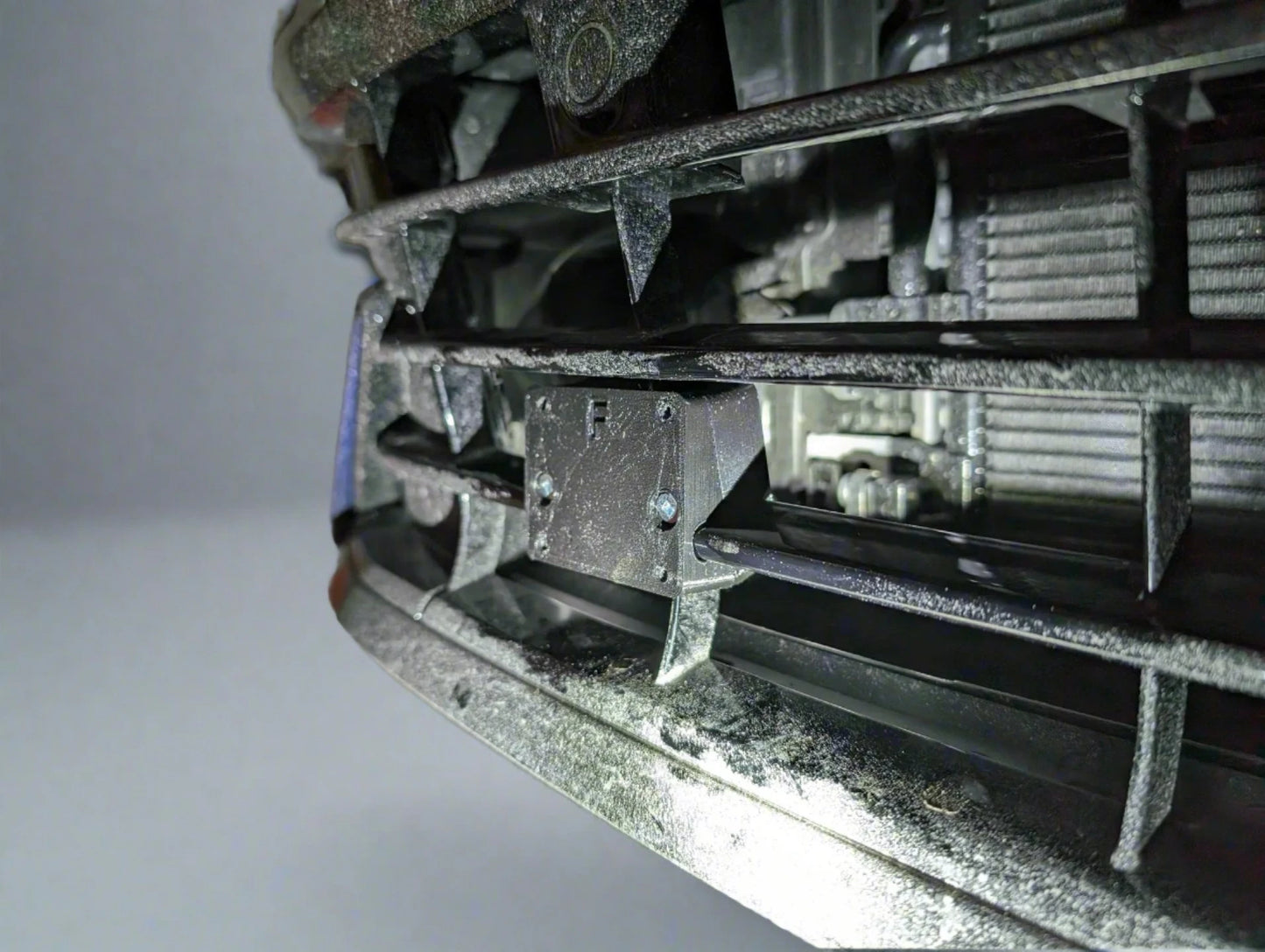

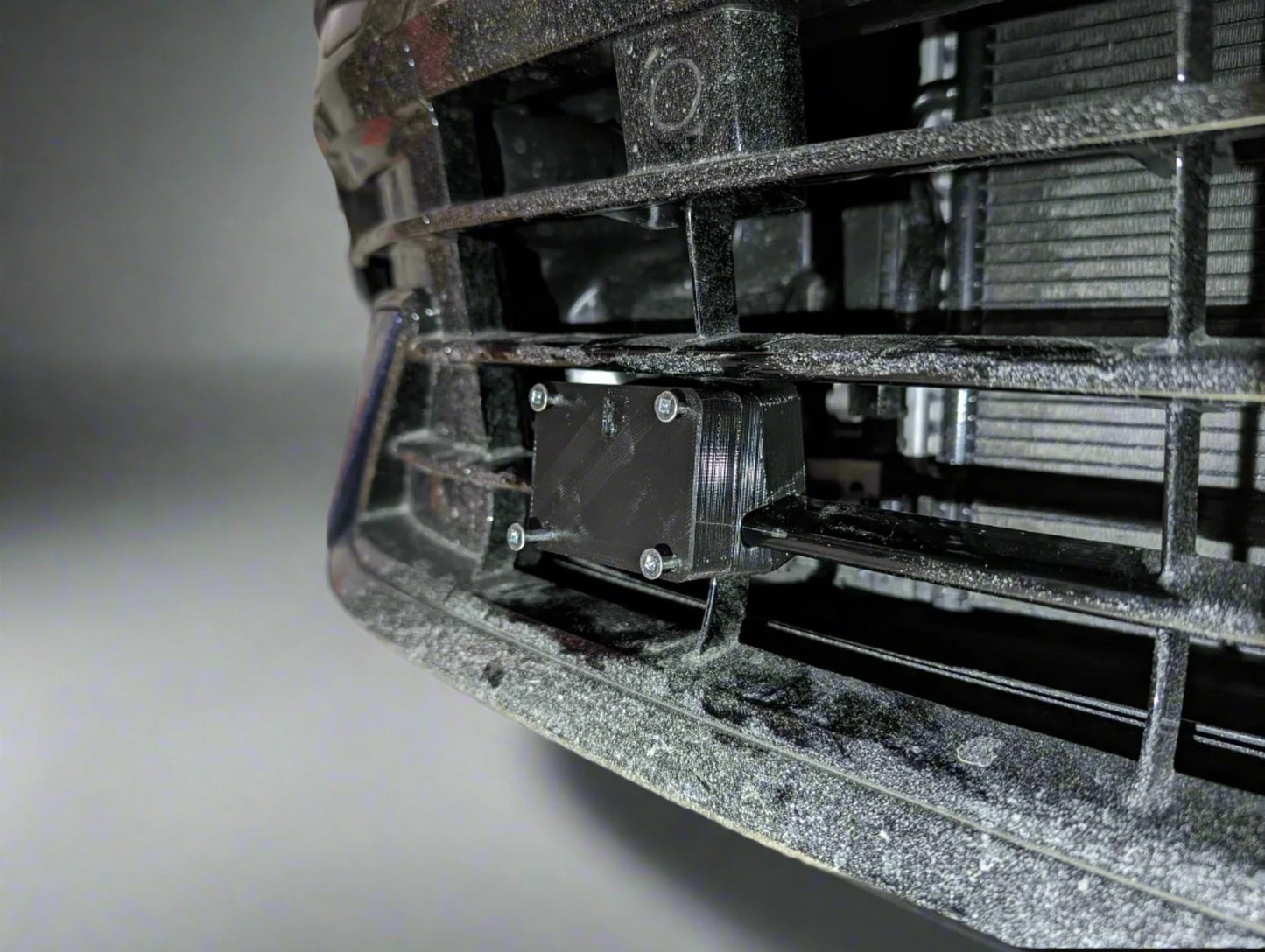

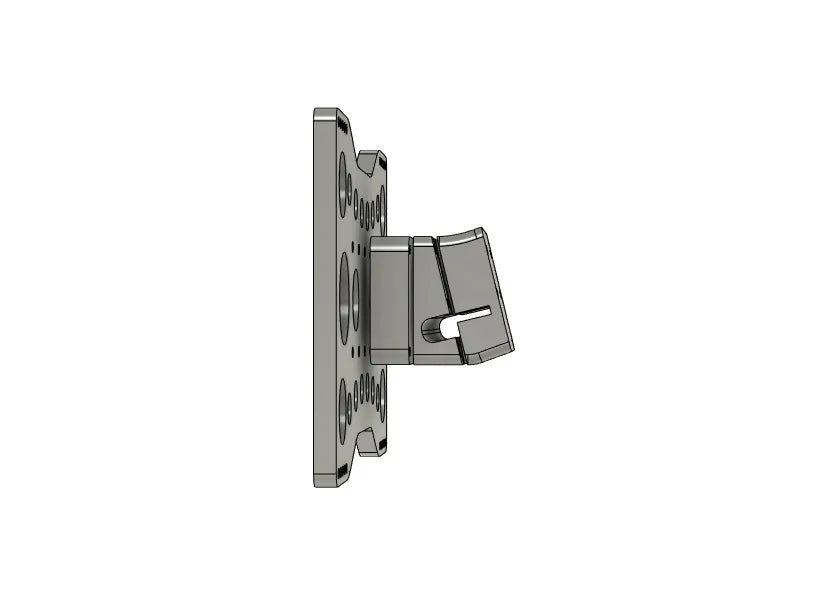

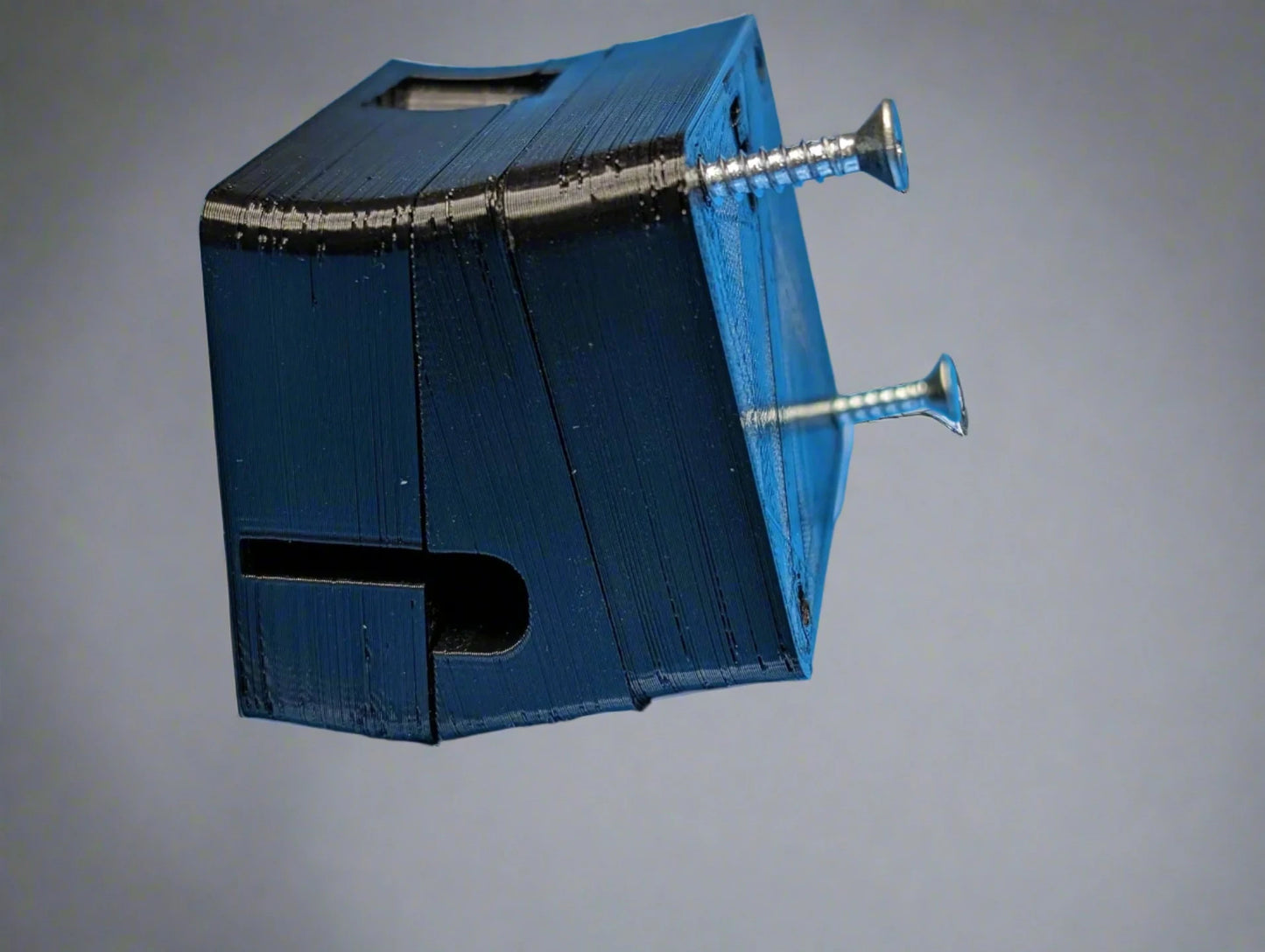

The front plate mount is designed for use with the MK8 Golf R or MK8 GTI. While the GTI has not been thoroughly tested, it should still be compatible. Make sure to position the F marker facing forward and upright. Part A goes behind the bumper, while part B clamps it from the front. To secure the base plate, sandwich part C between the combined A/B and use 2 x 1.5" screws for part B to A and 4 x 2" screws for the base through part C into A/B. Don't forget the 4 x plate screws.

Requires:

2 x 1.5" screws to hold part B to A.

4 x 2" screws to hold the base through part C into A/B.

4 x plate screws.
