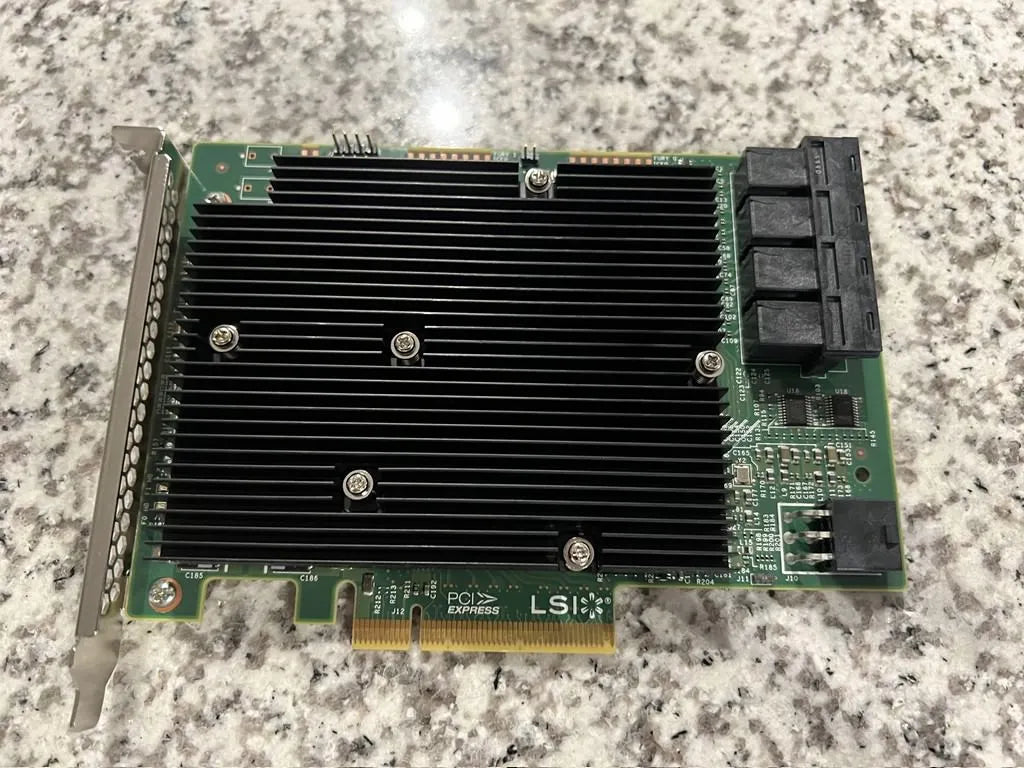

For LSI 9300-16i Noctua NF-A9x14 Fan Shroud
For LSI 9300-16i Noctua NF-A9x14 Fan Shroud
HBA runs pretty hot and I wanted to mount a fan to it instead of buying some cheap PCI slot fans. After attaching the fan, the card will take up 2 PCI slots. Parts(Not Included): LSI 9300-16i Noctua NF-A9x14 HS-PWM chromax.Black.swap, Premium Quiet Slim Fan, 4-Pin (92x14mm, Black) Place the rubber pieces on BOTH sides of the fan. Tricky to fit the fan in the shroud, be sure to put cable through the hole and orient fan to blow on the heatsink. You may need to bend the shroud clips. To attach to the heatsink, mount top clip into position and mind to not bump any SMD components. Then attach bottom clip, you may need to flex the fan shroud, once top and bottom are clipped slide the shroud to the left so the right clip is also mounted. It should be a tight fit and not slide around. This fan shroud allows for optimal cooling of the HBA, reducing the risk of overheating. Made with durable PETG material, it securely mounts the Noctua NF-A9x14 HS-PWM chromax.Black.swap fan to the card, taking up two PCI slots. The included rubber pieces provide extra stability for the fan, which can be tricky to fit into the shroud. With proper orientation and careful attachment, the shroud will snugly encase the fan and provide efficient cooling for the heatsink.
